API 5L X42 Line Pipe

X42 line-pipe enquiries with the API 5L edition, PSL, manufacturing route and dimensions defined. Add service conditions and inspection requirements for quotation.

Request a Quote WhatsApp Contact Technical Sales

PRODUCT SPECIFICATIONS

KEY SPECIFICATIONS

Grade: Exact grade under the governing standard; confirm on quotation/PO.
Standard: Governing product standard and edition; confirm on quotation/PO.
Manufacturing process: Permitted manufacturing route under the governing standard; confirm on quotation/PO.
Outer diameter: Outside diameter or nominal pipe size under the governing standard; confirm on quotation/PO.
Wall thickness: Wall thickness, schedule, or nominal weight under the governing standard; confirm on quotation/PO.

Technical classification

Material / substrate: Carbon Steel
Form: Pipe
Application: Oil & Gas

Product specifications

Send grade, standard, dimensions, and delivery requirements for a matched product quotation.

Product specifications
Property	Value
Product identity
Product	API 5L X42 Line Pipe
Grade	Exact grade under the governing standard; confirm on quotation/PO.
Material	Carbon Steel
Product form	Pipe
Standards and classification
Standard	Governing product standard and edition; confirm on quotation/PO.
Dimensions
Outer diameter	Outside diameter or nominal pipe size under the governing standard; confirm on quotation/PO.
Wall thickness	Wall thickness, schedule, or nominal weight under the governing standard; confirm on quotation/PO.
Process and connections
Manufacturing process	Permitted manufacturing route under the governing standard; confirm on quotation/PO.

Overview

X42 identifies a line-pipe grade under API 5L; it does not define the complete purchase specification. State the edition, PSL1 or PSL2, complete grade designation and delivery condition, together with the seamless or welded route permitted by the project. Do not infer pressure rating or service suitability from X42 alone.

List outside diameter, nominal wall, length, tolerances, ends and coating by item. Include operating medium and project requirements for toughness, sour service, hydrostatic tests and nondestructive examination where applicable. A change to another grade or manufacturing route requires the purchaser’s technical approval. Confirm document scope, quantity, packing and delivery terms with the quotation.

Product scope

Specify X42 as part of a complete line-pipe order
Keep grade selection separate from pressure design approval
Review any grade or route substitution against the project specification

Applications

Project line-pipe procurement explicitly specifying X42
X42 enquiries requiring a defined PSL and delivery condition
X42 pipe orders with service-specific testing and coating requirements

Surface options

Specify bare or temporary protective finish and storage conditions
Define external coating or internal lining, cutbacks and acceptance criteria

Processing & form

Outside diameter, nominal wall thickness, length and tolerances
End preparation, marking and heat or pipe identification
Required hydrostatic and nondestructive examination methods, coverage and acceptance

Packing, inspection & delivery documents

Include packing, material certificate and inspection requirements so costs and delivery arrangements can be reviewed together.

Packing & delivery

Export packing options

State end and bevel protection, coating protection, maximum piece or bundle weight and unloading limits. Add storage conditions, destination port and required delivery date. Confirm the packing plan, availability and delivery terms in the quotation and purchase order.

Quality assurance

Quality documents

Compare the ordered standard edition, grade, PSL, route and delivery condition with pipe markings and inspection records. Specify dimensional, mechanical, hydrostatic and nondestructive examination requirements, certificate type and witness points. Confirm document availability and inspection scope before order acceptance.

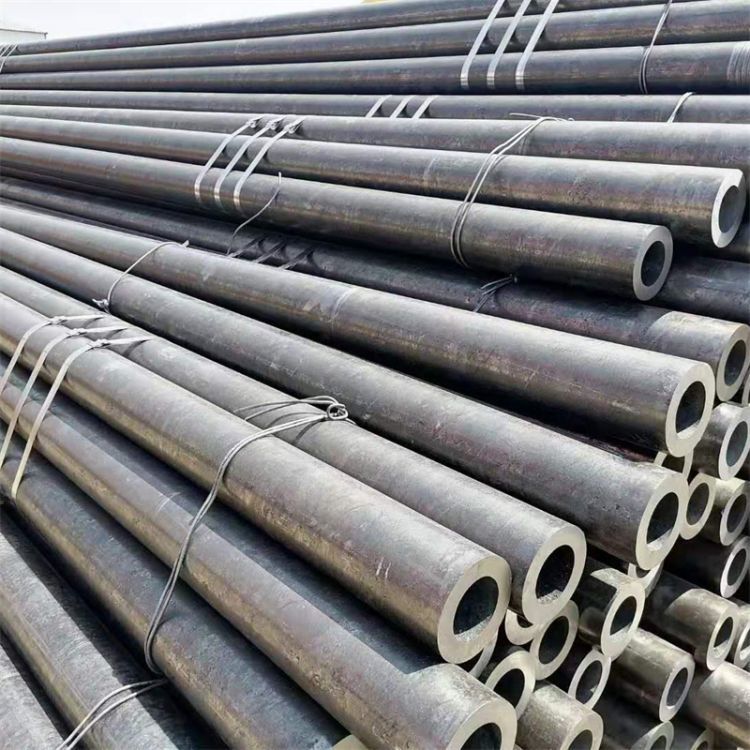

Export packing & loading evidence

Representative export packing and loading evidence. Final packing follows the approved order.

FAQ

Is X42 alone a complete pipe order?

No. Specify the API 5L edition, complete grade designation, PSL and delivery condition, plus the permitted route, dimensions and acceptance requirements. Confirm the exact marking and certificate designation against the ordered edition rather than shortening every order to X42.

Can X42 replace Grade B or another X grade?

A grade change requires review against the design code and project specification. Grade alone does not establish allowable pressure, weldability, toughness or service suitability. Obtain the purchaser’s technical approval before changing grade, wall thickness or manufacturing route.

Does PSL2 establish suitability for sour service?

PSL2 is a product specification level. It does not by itself establish suitability for sour service. Provide the service specification and any additional chemistry, hardness, toughness, HIC or SSC requirements, including test methods, sampling and acceptance criteria.

Which inspection documents belong in the order?

Specify the certificate type, heat and pipe identification, dimensional and mechanical results, and applicable hydrostatic and nondestructive examination records. Add coating records and witness points where required. Document availability and third-party involvement must be confirmed with the quotation.
