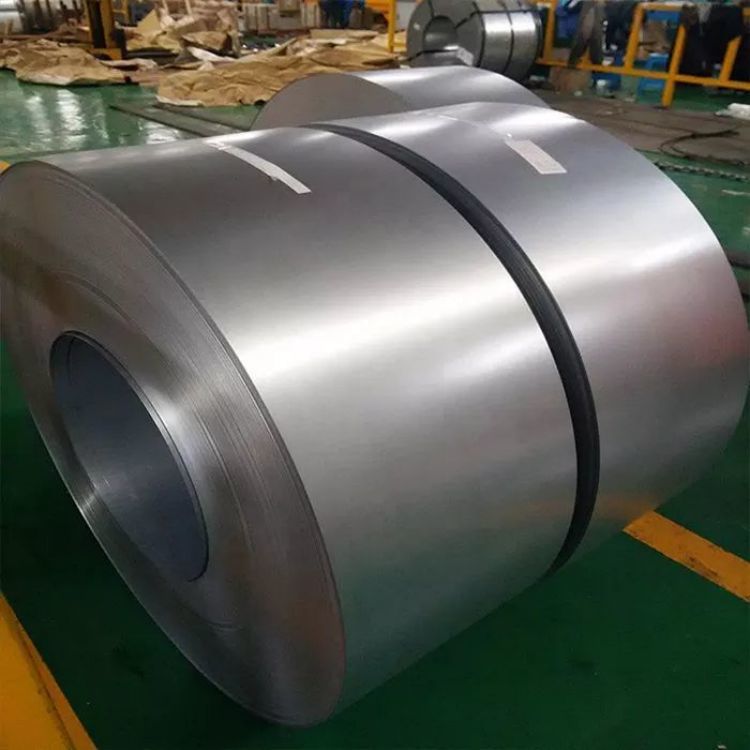

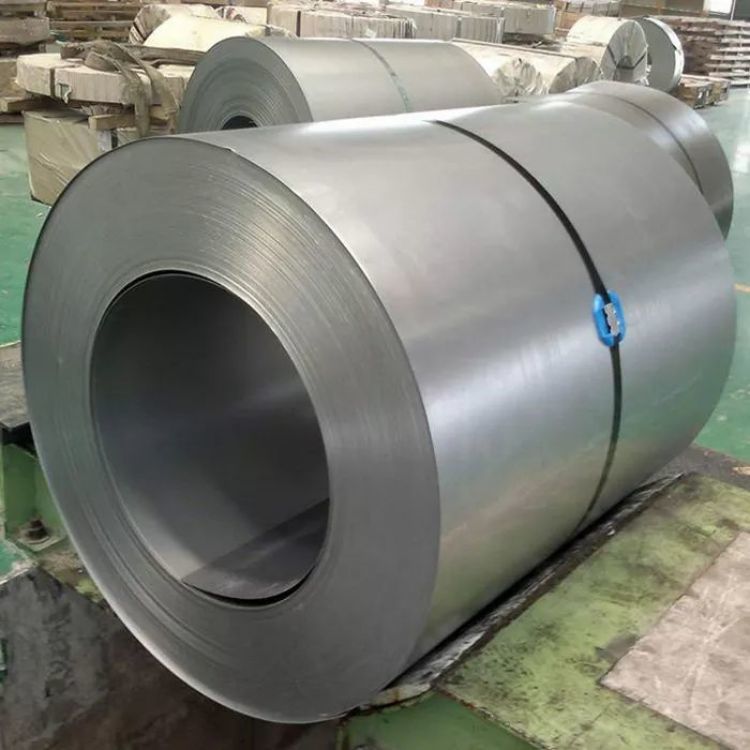

SPCC Cold Rolled Steel Coil

JIS G 3141 SPCC cold rolled steel coil for general forming, panel, enclosure, and precision slit programs. Confirm temper, surface, thickness tolerance, mechanical requirements, and EN 10204 3.1 MTC on the purchase order.

Request a Quote WhatsApp Contact Technical Sales

PRODUCT ORDER SPECIFICATION CONFIRM FOR QUOTATION

KEY SPECIFICATIONS

Grade: SPCC
Standard: JIS G 3141 Standard reference
Manufacturing process: cold-rolled
Material: Carbon Steel
Product form: Coil

Technical classification

Material / substrate: Carbon Steel
Form: Coil
Process: Cold Rolled
Application: Manufacturing

SPCC to JIS G 3141: choose temper, surface and forming duty

These references explain product selection. Availability, dimensions, minimum order quantity and delivery time depend on the requested specification and are confirmed in the quotation and purchase order.

SPCC to JIS G 3141: choose temper, surface and forming duty
Selection reference	Typical use or scope	What to check
SPCC product identity	Commercial-quality cold rolled steel for panels, cabinets, enclosures and general forming.	Use JIS G 3141 with the required edition. SPCC is not an automatic substitute for SPCD or SPCE drawing grades.
Temper and surface	Annealed or skin-passed condition, temper and surface affect forming and downstream finishing.	Specify oiling, surface requirements and the intended forming operation together.
Coil and slit strip dimensions	Thickness, width and edge condition must suit the forming or slitting line.	State tolerances, coil ID, maximum coil mass and edge requirements. Confirm the offered range for the order.

Inspection and shipment documents

Match coil identity to the MTC and inspect thickness, width, surface and the ordered mechanical requirements. Chemistry or a grade name alone does not guarantee deep-drawing performance.

Check product standard references Review certificates and their scope Review inspection and quality controls

Product specifications

Send grade, standard, dimensions, and delivery requirements for a matched product quotation.

Product specifications
Property	Value
Product identity
Product	SPCC Cold Rolled Steel Coil
Material	Carbon Steel
Grade	SPCC
Product form	Coil
Standards and classification
Standard	JIS G 3141Selection reference; certification to this standard requires order review.
Process and connections
Manufacturing process	cold-rolled
Parameters to include in your inquiryProvide the following values for review together with quantity, destination port and required delivery date.
Thickness	Nominal thickness in mm, tolerance and whether the value is base-metal or total coated thickness.
Width	Width in mm, tolerance and mill or slit edge requirement.
Delivery condition	Delivery, heat-treatment, or processing condition under the governing standard; confirm on PO.
Supplemental procurement details
Chemical composition	C <= 0.15%; Mn <= 0.60%; P <= 0.100%; S <= 0.035%; confirm JIS edition.
Mechanical properties	>= 270 MPa tensile only when ordered JIS annealed / skin-passed table applies.
Thickness / width / tolerance	0.3-3.0 mm x 600-1500 mm typical; tolerance per PO and JIS table.
Delivery condition / surface	Annealed or skin-passed; oiled or dry. State temper and surface on PO.
Documents / EN 10204 3.1 MTC	EN 10204 3.1 MTC by heat / coil with chemistry and ordered mechanical results.
Inspection	Dimensions, surface and mechanical records per PO; witness when ordered.
Export packing	Moisture barrier; straps; edge protection; labels; ordered eye orientation.

Overview

SPCC Cold Rolled Steel Coil is a JIS G 3141 commercial-quality product for bending, roll forming, panels, enclosures, and light stamping without a drawing-grade guarantee. The RFQ should state the JIS edition, dimensions and tolerance, annealed or skin-passed condition, temper and surface, oiling, coil weight, edge, and packing. Common SPCC chemistry limits are C 0.15% maximum, Mn 0.60% maximum, P 0.100% maximum, and S 0.035% maximum, subject to the ordered edition and MTC. A 270 MPa minimum tensile strength applies only when the ordered JIS table requires it; yield strength and elongation depend on thickness, temper, and edition. SPCC must not be treated as an automatic substitute for SPCD or SPCE drawing grades. Request EN 10204 3.1 MTC, heat or coil identity, dimensional inspection records, and seaworthy export packing.

Applications

Electrical cabinets and appliance panels
Steel furniture panels after forming and finish requirements are confirmed
General bent and roll-formed components
Light stamped parts without drawing-grade guarantees
Precision slit coil programs

RFQ documents & delivery

Packing, MTC, and inspection path — include them in your RFQ for an actionable quote.

Packing & delivery

Export packing options

Export seaworthy packing with traceable bundle labels and loading photos.

Quality assurance

Quality documents

Mill certificate, inspection support, and shipment documentation can be coordinated before loading as ordered.

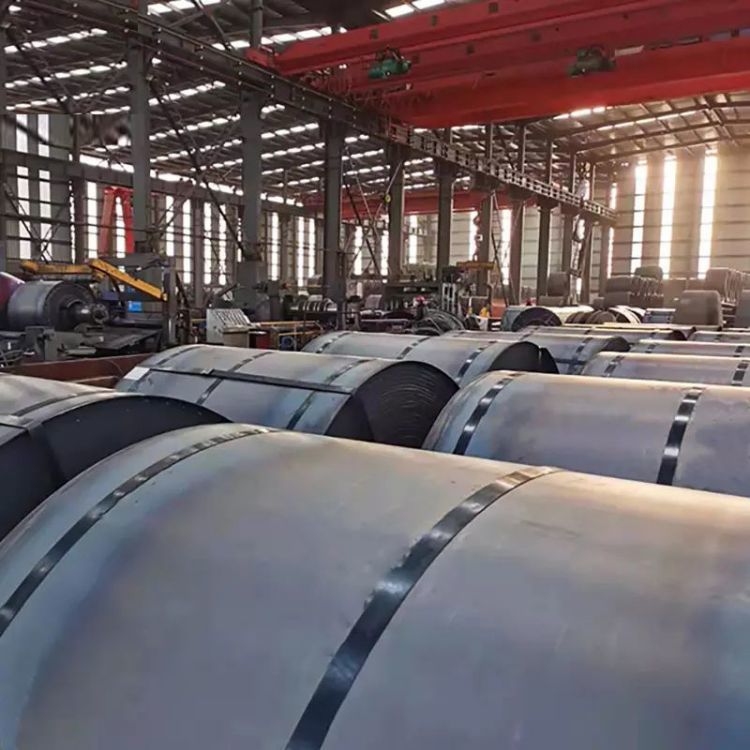

Export packing & loading evidence

Representative export packing and loading evidence. Final packing follows the approved order.

FAQ

What chemistry should an SPCC purchase order reference?

Commonly referenced JIS G 3141 SPCC maximums are C 0.15%, Mn 0.60%, P 0.100%, and S 0.035%. The order should name the applicable JIS edition, and the final values should be confirmed on the heat- or coil-linked MTC.

Does SPCC guarantee deep-drawing performance?

No. SPCC is commercial quality for general forming. Yield strength and elongation depend on the ordered temper, thickness, and JIS edition. Use SPCD or SPCE, or another explicitly agreed drawing grade, when the forming depth requires a drawing guarantee.

What should buyers include in an SPCC coil RFQ?

Include JIS G 3141 edition, SPCC grade, thickness and width with tolerance, temper, surface designation, oiling, edge, coil ID and maximum weight, quantity, packing orientation, destination port, EN 10204 3.1 MTC, and inspection hold points.

What should steel furniture and cabinet manufacturers confirm?

Share the panel drawing, bend or stamping requirements, thickness tolerance, surface appearance and downstream painting process. Confirm the required temper, oiling and surface with the quotation. Deep-drawn parts need a separately specified drawing grade or agreed forming requirements; SPCC alone is not a deep-drawing guarantee.

How do I confirm SPCC coil MOQ and delivery time?

Request a current quotation for the required thickness, width, temper, surface and quantity. State whether you need full-width or slit coil, the destination port and required shipping date. Availability, processing, minimum order quantity and production or shipping dates must be confirmed in writing for that order.

What information is needed to quote SPCC Cold Rolled Steel Coil?

Send the required grade or standard, dimensions, quantity, destination port and application. Add surface, processing, packing or inspection requirements when they affect the order.

Compare, specify, then quote

Keep the grade in its governing standard. Use these procurement resources to confirm dimensions, quantity, inspection scope and destination.

Required RFQ fields

grade and governing standard
thickness, width and tolerance
surface and delivery condition
coil ID and maximum coil mass
quantity and destination port
MTC, inspection and packing scope
temper, oiling and forming requirements
